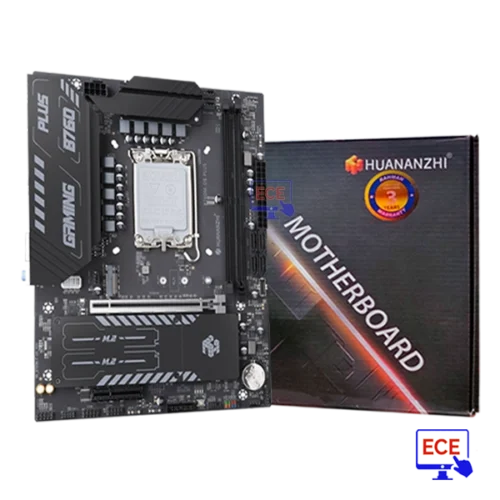

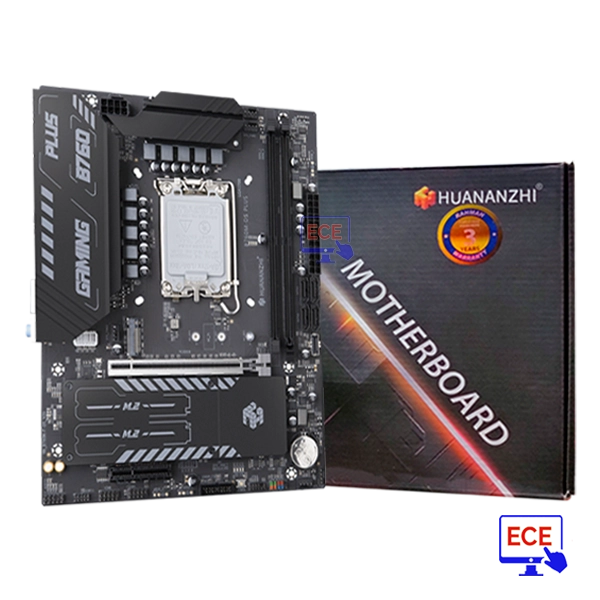

HUANANZHI B760M-D5 PLUS 12TH/13TH/14TH GEN M-ATX MOTHERBOARD
Add to Wishlist
CompareAdd to Wishlist
Specification:
· Support Intel LGA1700 platform processor
· 2 x DDR5 memory slot, Max support 96 GB
· DDR4 6800/6400/6000/5600/5200/4800MHz Memory(Depends on CPU)
· 1xPCI Express4.0 x16, 1xPCI Express3.0 x4
· 3xM.2 2280 NVME PCIE X4 4.0，1xM.2 WIFI
· Realtek 2.5G Gigabit network card RTL8125BG
· 4xUSB2.0 480Mbps，2xUSB3.2 10Gb/s
· 1xType-C 5Gb/s，2xHDMI 2.1，1xDP 1.4
· AMI UEFI BIOS Graphics BIOS
Description
HUANANZHI B760M-D5 PLUS 12TH/13TH/14TH GEN M-ATX MOTHERBOARD
HUANANZHI B760M-D5 is a Micro-ATX motherboard designed for Intel’s 12th, 13th, 14th Generation processors, utilizing the LGA 1700 socket. It is an economical yet feature-rich option for users building versatile systems compatible with a broad range of Intel CPU generations.
Key Features:
- Processor Compatibility: Supports Intel Core i3, i5, i7, and i9 CPUs from the 12th, 13th,14th Generations, covering Skylake, Kaby Lake, Coffee Lake, and Coffee Lake Refresh processors.
- Memory: Features two DIMM slots, supporting up to 96GB of DDR5 RAM in dual-channel configuration, ideal for efficient multitasking and general productivity.
- Storage Options: Includes SATA III (6Gbps) ports for connecting traditional SSDs and HDDs, as well as an M.2 slot for high-speed NVMe or SATA SSDs, enhancing data access and system responsiveness.
- Expansion Slots: One PCIe x16 slot for adding a discrete GPU and additional PCIe x1 slots for other expansion cards, such as network or sound cards, to enhance functionality.
- Connectivity: Equipped with USB type-C ,USB 3.2 and USB 2.0 ports, offering compatibility with a variety of peripherals and supporting faster data transfers.
- Audio and Networking: Integrated Realtek High Fidelity Audio for clear sound output, along with a built-in Realtek 2.5G Gigabit network card RTL8125BG port for reliable, high-speed network connections.
- Graphics Output: Provides two HDMI and DP outputs (depending on the integrated GPU in the CPU), supporting diverse display setups and multi-monitor configurations.
- Form Factor: Micro-ATX design, fitting compact and mid-sized cases, making it suitable for builds with limited space.
Use Case
The HUANANZHI B760M-D5 is an excellent choice for budget-conscious users who need a reliable, flexible motherboard for general-purpose tasks, office work, and light multimedia applications. With support for multiple CPU generations, DDR5 memory, and an M.2 NVMe slot for high-speed storage, it offers a balanced foundation for a range of build options.
What is the price of HUANANZHI B760M-D5 12th/13th/14th Gen Motherboard in Bangladesh?
The latest price of HUANANZHI B760M-D5 12th/13th/14th Gen Motherboard in Bangladesh is 17000৳. You can buy the Huananzhi B760M-D5 12th/13th/14th Gen Motherboard at best price from our website or visit our showroom.
| CPU | 1.Support for 12th and 13th, 14th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1700 package 2. L3 cache varies with CPU |
| Chipset | 1. Intel B760 Express Chipset |
| Memory | 1. Support dual channels DDR5 6800/6400/6000/5600/5200/4800MHz Memory(Depends on CPU)，Max support 96 GB |
| Onboard Graphics | 1. Integrated Graphics Processor 2. 2 x HDMI port 3. 1 x DP port 4. Supports NVIDIA® and AMD® Graphics Cards |
| Audio | 1. Realtek High Fidelity Audio ALC897 |
| LAN | 1. Realtek 2.5G Gigabit network card RTL8125BG |
| Expansion Slots | 1. 1xPCI Express4.0 x16 2.1xPCI Express3.0 x4 |
| Storage Interface | Chipset: 1. 3xM.2 2280 NVME PCIE X4 4.0 2. 4xSATA3.0 6Gbps interfaces |
| USB | 1.4xUSB2.0 480Mbps 2. 2xUSB3.2 10Gb/s 3. 1xType-C 5Gb/s |
| Internal I/O Connectors | 1. x USB2.0 480Mbps PIN 2. 1 x USB3.2 5Gb/s PIN 3. 1 x Front audio PIN 4. 1 x COM PIN 5. 1 x Power on/restart pin 6. 1x Debug pin 7. 1 x TPM PIN 8. 1 x Buzzer PIN 9. 1 x Type-C 5Gb/s 10. 1 x Debugging indicator light |
| Back Panel Connectors | 1. 1x Network card interface 2. 4xUSB2.0 480Mbps 3. 2xUSB3.2 10Gb/s 4. 1xType-C 5Gb/s 5. 1 x DP port 6. 2 x HDMI port 7. 3 x Audio jack(s) |
| Operating System | 1. Windows10 Windows11(Supports incoming power on/timed power on/network wake-up/S3 sleep/network card IPV4/IPV6) |
| Form Factor | 1. Micro ATX Form Factor; 235 x 185 MM |
| Packing list | 1 x Motherboard，1x SATA data cable，1xWarranty card |
| warranty | 3 years warranty |
Additional information
| Availability | |
|---|---|
| Motherboard Intel CPU Sockets | LGA 1700 |
| Motherboard FromFactor | Micro ATX |
| Motherboard RAM Type | DDR5 |
| Motherboard SpecialFeatures | M.2, Wi-Fi |
| Motherboard Processor Type | Intel |
